Stage II Performance Ignition-Rhino 700

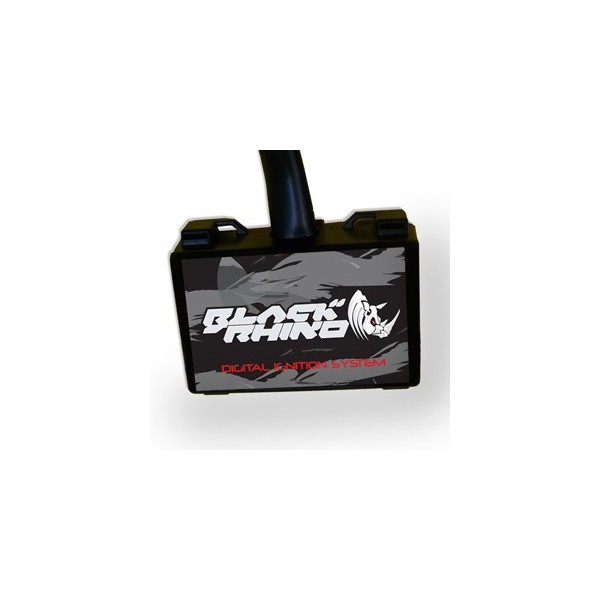

Introducing the Stage II 700 Rhino Performance Ignition Module. The Black Rhino Performance Ignition eliminates the 2008 and newer stock Rhino ignition's speed limiter, provides a performance ignition curve (+4 degrees over stock), and raises the stock rev limiter to 8000 RPM. It is completely compatible with the Yamaha Rhino Digital Dash and all other electronic components. This is a piggy-back module which supplements the Rhino factory ignition. Ignition and fuel injection control are combined in the same module with an easy to install wiring harness. This Performance Ignition also provides increased spark energy which makes for easier starting and improved throttle response. There is even an extra lead that, when power is applied, puts the Performance Ignition Module into 'Valet Mode' which limits forward and backward speeds to 15 MPH. Looking for 'bang for the buck' in performance parts? Nothing comes close to the Black Rhino Performance Ignition for the Rhino 700! The Performance Ignition Module can also be used together with any of the popular EFI controllers for the Rhino 700, such as a Power Commander, or our Black Rhino Command Center (see below). The new Rhino 700 Performance Ignition Module offers: Simple Plug-in Installation Removes Forward and Reverse Speed Limiters 15 MPH Safety Limiter Launch Limiter w/ Simple 1 Wire Hookup Improved Timing Curve Increased Spark Energy Easier Starting Higher Rev Limiter Improved Throttle Response Fully Compatible With the Rhino Digital Dash Full 1 Year Limited Warranty For even greater tuneability, we offer an optional remote programmer module, the Black Rhino Command Center, available separately. The Command Center plugs into the Performance Ignition Module and provides 4 selectable pre-programmed advance curves along with the ability to make air/fuel adjustments. There are 4 base fuel setting and the ability to adjust the air/fuel ration plus 20% or minus 17.5% within 3 rpm ranges. This wide range of adjustments allows the user to tune for a wide variety of vehicle modifications. The Command Center also comes with a PC package that allows the advanced tuner access to the advanced timing and accessory functions of the Performance Ignition Module. The user can modify any or all of the 4 pre-programmed advance curves along with RPM (up to 10,000 RPM) and speed limiter (5-199 MPH), a Launch Limiter, and RPM based output signal wires (useful in nitrous applications, etc.). The Command Center is meant to be mounted remotely, such as on your dash, so you can change settings on the fly if you like. The Command Center offers: Fully Adjustable Fuel Curve, Low/Mid/High +20% to -17.5% Ability to Adjust Launch Limiter Ability to Adjust Auxiliary or Nitrous Outputs Ability to Adjust RPM Limiter to 10,000 RPM Ability to Adjust Forward Speed Limiter (5-199 MPH) Ability to Adjust the 4 Pre-Programmed Ignition Curves, On The Fly Ability to Adjust Fuel Mappings, On The Fly Download the BRP 700 DI-S Installation Instructions - PDF - 457 kb
